HL-Y pro Series
Best Choice For Outdoor 3D Billboard Advertising
500*250mm Panel Design
SMD 3 in 1 LED Encapsulation Technology
Dual Service with Frontal and Real Maintenance
High Protection Aluminum Chassis Panel Design, CE and Rohs Approved
3 Years Warranty and 5% Spare Part
500*250mm Panel Design
SMD 3 in 1 LED Encapsulation Technology
Dual Service with Frontal and Real Maintenance
High Protection Aluminum Chassis Panel Design, CE and Rohs Approved
3 Years Warranty and 5% Spare Part
Product Description

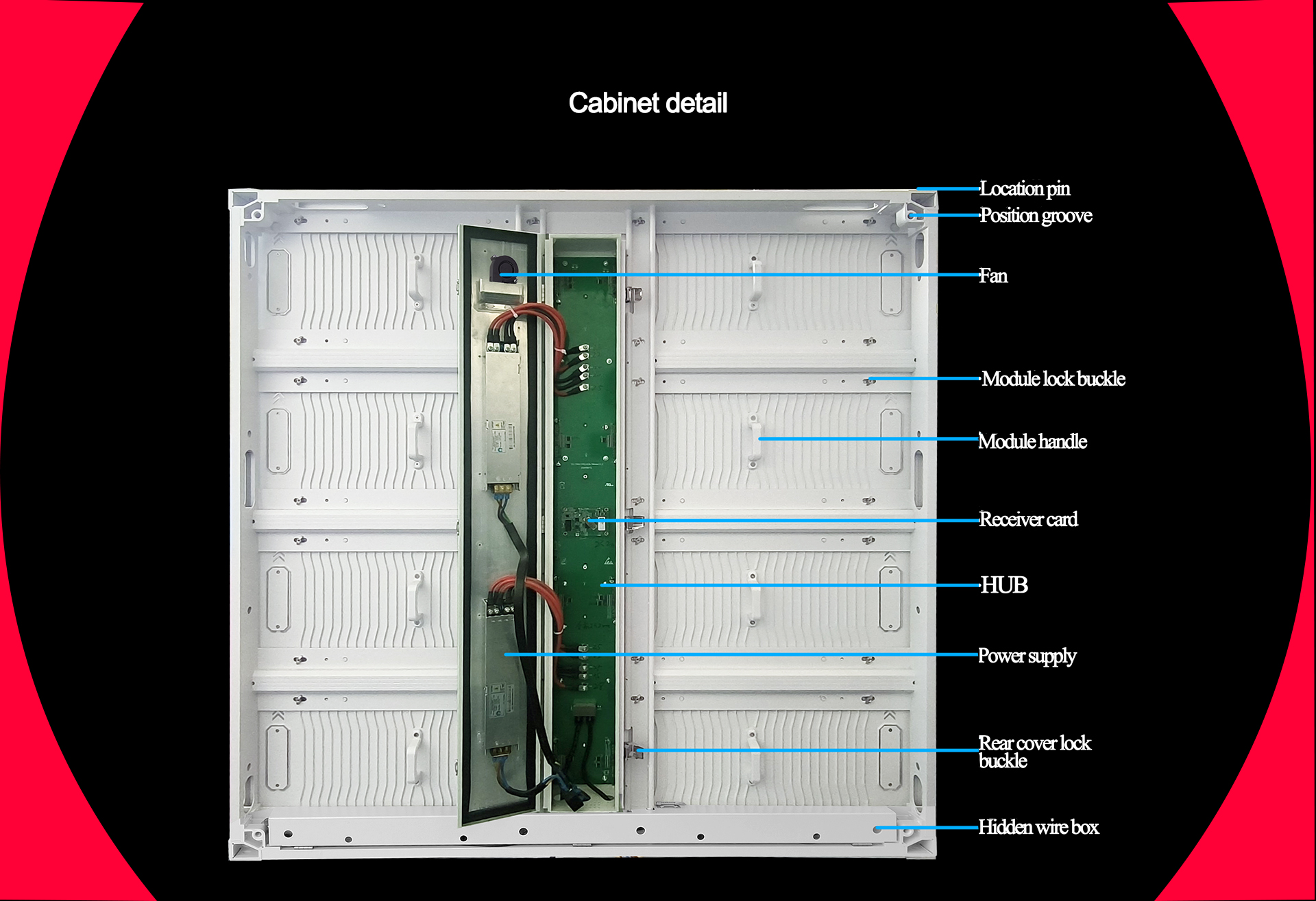

Outdoor fixed screen 1000 Pro aluminum extrusion cabinet LED display is a multi-functional LED display that is constantly updated in the market. The dimensions of the cabinet are 1000mm x 1000mm, which can be used as indoor fixed installation LED display, outdoor fixed installation LED display, rental LED display, perimeter motion LED display, advertising LED display, etc.
|
 |
|
|
Technical Parameters
| Outdoor Fixed Cabinet( HL-T2 pro Series) | ||||
| Pixel Pitch | 3.91 mm | 4.81 mm | 6.25 mm | 10.42 mm |
| LED | SMD1921 | SMD2727 | ||
| Cabinet Size(W*H) | 1000mm * 1000mm | |||
| Cabinet Resolution(W*H) | 256 * 256 | 208 * 208 | 160 * 160 | 96 * 96 |
| Refresh Frequency | 3840Hz | |||
| Cabinet Weight | 26.0KG | |||
| Brightness(nits) | >5500 | >6000 | ||
| Viewing Angle | 140°/120° | 120°/90° | ||
| Input Voltage | 110-220VAC | |||
| Max.Power Consumption | 800W/m² | |||
| Ave.Power Consumption | 260W/m² | |||
| IP Rating | IP65 | |||
| Operating Equipment | PC with Novastar controler or other | |||
* Above parameters are typical values, which are adjustable according to different project reqiurements.
