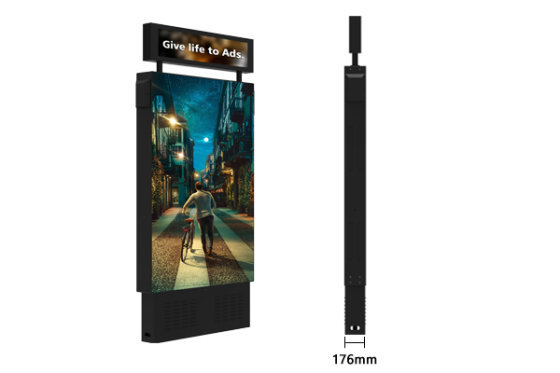

Digital LED Street Furniture
Pixel Pitch Indoor: 2.97,3.9mm
Brightness 6000nits
Remote Control & Cluster Management System
Intelligent monitor and auto brightness adjusting as per day and night
Customized LED Chip for brightness at 6000nits for 2.9mm outdoor fine pitch ,balance the effect between brightness and resolution
Solid LED Signage frame for outdoor long time use , can customized the signage frame as per the brand color.
Product Description
Solid Aluminum die casting panel design , 8:9 cabinet ratio ,standard aspect ratio perfectly achieve full HD 4K,8K resolutions Support front and back maintain ,the power box is swap-able and can be maintain from front side with high protection waterproof for both outdoor and indoor use With good LED Chip to reach the high color contrast to adapt indoor use as well .Support Dual Signal back up to improve the events experience.
|
Solid Structure for Outdoor Enviroment
High precise structure handling process make the joint area strong and smooth. Good coating for long time outdoor use to avoid corrosion and rusty |
 |
 |
High precise structure handling process make the joint area strong and smooth. Good coating for long time outdoor use to avoid corrosion and rusty |
Technical Parameters
| Series | Indoor Rental LED Screen | |
| Pixel Pitch | 2.9mm | 3.9mm |
| LED | SMD | SMD |
| Screen Size(W*H) | 1500mm * 2500mm | 1500mm * 2500mm |
| Screen Resolution(W*H) | 504*840 | 384*640 |
| Refresh Frame Rate | 50/60Hz | 50/60Hz |
| Net Weight | 411KG | 140KG |
| Cabinet Material | Galvanized Steel | Aluminum |
| Brightness | 6000nits | 6000nits |
| Viewing Angle | 160°/160° | 160°/160° |
| Input Voltage | 110-220VAC | 110-220VAC |
| Control Interface | RG45, USB | |
| Operating Equipment | Phone, Ipad, PC | |
* Above parameters are typical values, which are adjustable according to different project reqiurements.
Related Application
|
|
|
| Digital Street Furniture in EU | Digital Street Furniture in EU |
